Introduction

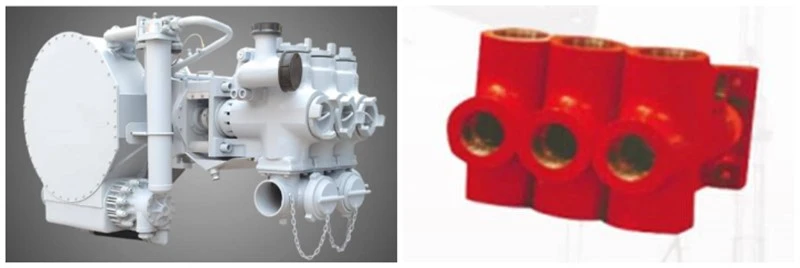

The HT400 Triplex Plunger Pump is a high-pressure plunger pump designed for oilfield cementing, fracturing, and acidizing operations, making it ideal for continuous high-pressure injection systems.
Parameter
|
Product Model |
HT400 triplex plunger pump |
|
Max. Brake Power kW (BHP) |
600BHP(447Kw) |
|
Max. Connecting Rod Torque(Nm) |
9782 |
|
Stroke (mm) |
203.2(8″) |
|
Max. Stroke |
224rpm |
|
Transmission Ratio |
8.6:1 |
|
Length×Width×Height (mm) |
1975X976X1156 mm |
|
Weight kg(lbs) |
2910kg(6402) |
|
Pump Stroke (rpm) |
32 |
70 |
128 |
171 |
244 |
|
Plunger Diameter |
Displacement GPM Pressure psi |
Displacement GPM Pressure psi |
Displacement GPM Pressure psi |
Displacement GPM Pressure psi |
Displacement GPM Pressure psi |
|
3-3/8"(85.7) |
30(104) 20000(138) |
65(245) 14314(99) |
119(450) 7789(54) |
159(601) 5832(40) |
227(860) 4078(28) |
|
4"(101.6) |
42(158) 14000(97) |
91(344) 10190(70) |
167(632) 5545(38) |
223(844) 4152(29) |
319(1207) 2903(20) |
|
4-1/2"(114.3) |
53(200) 11200(77) |
115(435) 8051(56) |
211(800) 4381(30) |
282(1068) 3280(23) |
404(1527) 2294(16) |
Features of HT400 Triplex Plunger Pump
600 BHP High-Power Drive System
HT400 Triplex Plunger Pump features a 600 BHP (447 kW) power end with an 8.6:1 gear ratio, delivering stable high-pressure output under heavy-load conditions for long-duration fracturing and injection operations.
Stable Triplex Pressurization Structure
Adopts a triplex alternating discharge system, reducing pressure fluctuation by 15%–20% and maintaining stable output at up to 20,000 psi, minimizing pipeline impact.
High-Wear-Resistance Plunger System
Uses ceramic or amorphous alloy-coated plungers, increasing wear resistance by around 100% and enabling continuous operation beyond 8,000 hours.
Modular Maintenance Structure
Separates power end, gearbox, and fluid end, allowing independent replacement of key components and reducing maintenance time by approximately 30%.
Customization
|
Customizable Item |
Description |
|
Pressure & Flow |
Adjustable via plunger diameter and stroke combination to meet different pressure and displacement requirements. |
|
Power Mode |
Available in electric or diesel drive, with configurable speed and transmission system based on site conditions. |
|
Fluid End |
Cylinder body and valve assembly structure can be customized for different media and wear conditions. |
|
Wear Parts Material |
Plungers and seals can be made of ceramic or alloy materials to improve wear resistance and service life. |
|
Connection Standard |
Inlet and outlet flange connections can be customized according to API or non-standard pipeline requirements. |
FAQ
Q: Can I take a virtual tour of your factory?
A: Certainly. We can show you our workshops, warehouses, and offices via video.
Q: What is the primary application of the HT400 Triplex Plunger Pump?
A: The HT400 Triplex Plunger Pump is used in high-pressure fluid delivery systems for oilfield cementing, fracturing, and acidizing operations.
Q: What is the method of transport packaging?
A: It is packaged in industrial shock-resistant wooden crates.
Q: What types of media is it compatible with?
A: It is suitable for use with water-based fracturing fluids and acidizing fluids.
Q: What is the delivery lead time?
A: The standard lead time is approximately 10–20 days.
Certificate
Our company has obtained API Q1 certification and authorization to use the API Monogram, and has successfully passed the ISO 9001, ISO 14001, and ISO 45001 management system certifications.
